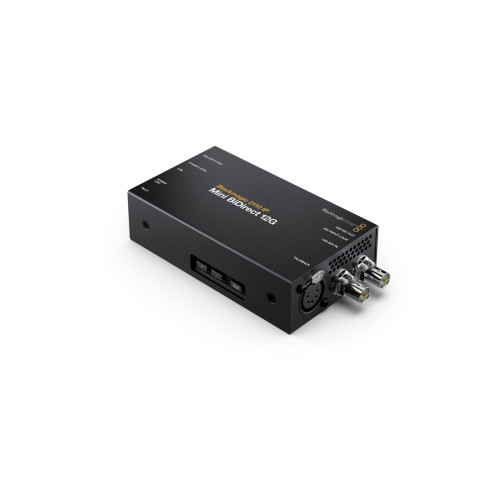

Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. It connects and powers from 10G Ethernet or the included DC power supply.
- Product Identifiers -
MPN: CONVNVIPF/IP/12GEAN: 9338716009033
- Product Specifications -
Connections
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
- SMPTE ST-2110 IP Video Inputs/Outputs: 1x 10G Ethernet
- Analog Audio Inputs: 1x 5 pin XLR Talkback.
- Analog Audio Outputs: 1x 5 pin XLR Talkback.
- SDI Audio Inputs: 16 Ch embedded audio on SDI input.
- SDI Audio Outputs: 16 Ch embedded audio on SDI loop output.
- SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
- SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
- Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD and 4K.
- Reclocking: Yes
- Ethernet: 1x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates.
- Computer Interface: 2x USB-C 3.1 Gen 1 (up to 5 Gb/s) for configuration and firmware updates.
SDI Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards
- 720p50, 720p59.94, 720p60
- 1080i50, 1080i59.94, 1080i60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080PsF25, 1080PsF29.97, 1080PsF30
- 2K Video Standards
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
- 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
- SDI Compliance
- SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
- SDI Color Precision: 4:2:2
- SDI Color Space: YUV
- SDI Auto Switching: Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
IP Video Compliance
- SMPTE 2110-20 (Uncompressed Video): IGMP v2
- SMPTE 2110-21 (Traffic Shaping)
- Sender: Narrow
- Receiver: Narrow, Wide Synchronous, Asynchronous
- SMPTE 2110-30 (PCM): Audio Conformance level: Level C
- SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
- Codec: Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
- Precision Time Protocol
- IEEE 1588-2008 (PTP v2)
- ST 2059-1
- ST 2059-2
- NMOS IS-04 Discovery and Registration
- v1.3.2
- Peer-to-peer via mDNS/DNS-SD
- NMOS IS-05 Connection Management: v1.1.2
- NMOS BCP-002-01: Natural Grouping
- NMOS BCP-004-01: Receiver capabilities
LED Indicators
- 1x IP Input Lock LED indicator light
- 1x SDI Input Lock LED indicator light
- 1x Tally LED indicator light
Control
- Talkback button controls for Volume Up, Volume Down and Push to Talk.
Talkback and Tally
- Talkback: 5-pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video.
- Live Tally Indicator: Tally LED indicator light
Operating Systems
- Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
- Windows 10 and 11.
Power Requirements
- Power Supply
- 1x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries.
- 1x RJ45 Ethernet connector for power from PoE++ power supplies.
- Operational Voltage Range: 12 - 16 V
- Power Usage: 18W
Physical Specifications
- Dimensions: 5.75in x 2.91in x 1.34in
- Weight: 10.41oz
Environmental Specifications
- Operating Temperature: 5° to 40° C (41° to 104° F)
- Storage Temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
