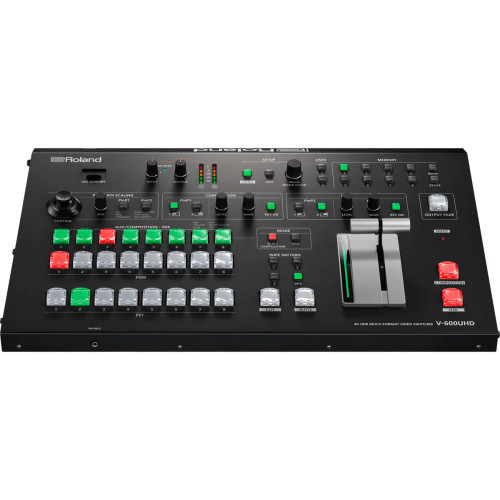

The Roland V-600UHD is built to bring true 4K HDR production power into live events, corporate presentations, houses of worship or any venue where image quality, flexibility and workflow matter. It allows you to transition into 4K workflows one input at a time thanks to Ultra Scaler technology on every input, so you can mix HD and 4K sources seamlessly without compromise. You don't have to replace all your gear overnight—your older cameras and computers can still contribute while newer 4K sources sit alongside them.
For visual fidelity it supports High Dynamic Range (HDR), wide color gamut (Rec.2020) plus 10-bit 4:4:4 processing, so you deliver sharper detail, smoother color transitions, richer reds and yellows, and deeper blacks and highlights even in mixed light environments. If your stage or LED backdrop throws tricky contrast, this switcher helps you manage it gracefully.
The I/O is designed for real-world production demands: four HDMI 2.0 inputs, two 12G-SDI inputs, three HDMI outputs plus one SDI output, plus a built-in multi-view output. Scaling and down-conversion are supported so you can output both HD and 4K feeds from the same device. The "Region of Interest" (ROI) feature allows you to treat a single 4K camera as if it were multiple cameras by cropping up to eight distinct HD shots from one source.
On the creative side the V-600UHD enables dual picture-in-picture windows, customizable aspect ratios, sizes and input scaling, and a rich composition engine with downstream keyers, still image recall, overlay graphics and more. Audio workflow is handled with flexible de-embedding and re-embedding of embedded source audio, plus external routing so your video switcher plays nicely with your audio console and streaming chain. Remote control via LAN/RS-232, full memory presets, multi-view monitoring and touchscreen ready setup round out the feature set.
Whether you're streaming a multi-camera worship service, managing a corporate gala with brand visuals on a mega LED wall, capturing an esports production or deploying a mobile truck, the V-600UHD offers prosumer simplicity with broadcast-level capability so you can focus on content, not workflow limitations.
Features
| 4 HDMI 2.0 inputs + 2 12G-SDI inputs | Accept STB, camera, computer and legacy SDI sources into one switcher |
| Ultra Scaler technology on every input | Handle Full HD, UHD 4K and DCI 4K sources seamlessly |
| High Dynamic Range (HDR) support | Preserve detail in bright and dark areas for visually compelling output |
| Wide Color Gamut support (Rec.2020) | Display richer, more accurate colors—especially reds and yellows |
| 10-bit 4:4:4 color processing | Reduce banding and sharpen small fonts and fine detail |
| Region of Interest (ROI) from single 4K camera | Create multiple HD shots from one 4K source |
| Dual picture-in-picture windows | Overlay two input sources with customizable aspect ratios and sizes |
| Multiple output formats and down-conversion | Output 4K and HD simultaneously and feed program, aux, multiview |
| Flexible audio de-embed/re-embed routing | Manage embedded source audio and external audio console integration |
| Remote control, presets and multi-view monitor | Use LAN/RS-232, save memory settings, monitor all sources on one screen |
| Firmware Version 3.0 support | Adds new input/output frame rate formats and improved user button functionality |
| User button for Program/Aux select | Allows a dedicated button to toggle between main output and aux for monitoring |
| Enhanced automatic ROI workflow | Improved usability when cropping multiple shots from one 4K source |
| Expanded HDR and DCI support | Better integration with cinema-grade content and wide gamut displays |
| Improved remote control and app compatibility | Streamlined control and monitoring via supported apps and software |
Videos
- Product Identifiers -
MPN: V-600UHDUPC: 761294513668
- In The Box -
- Roland V-600UHD 4K HDR Multi-format Video Switcher
- Owner's Manual
- Power cord
- Rack-mount angle x2
