AJA 12G-AMA 4-Channel 12G-SDI Balanced Analog Audio Embedder/Disembedder

SKU:
AJA-12G-AMA

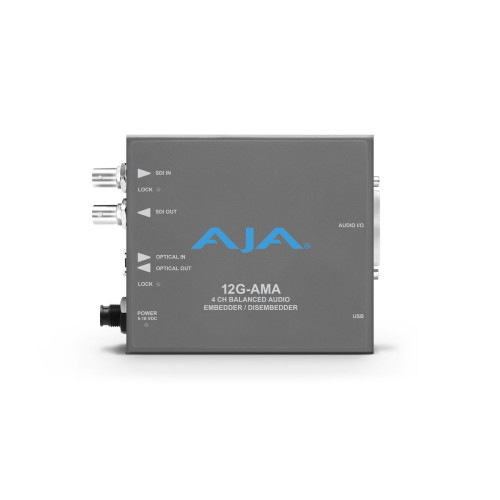

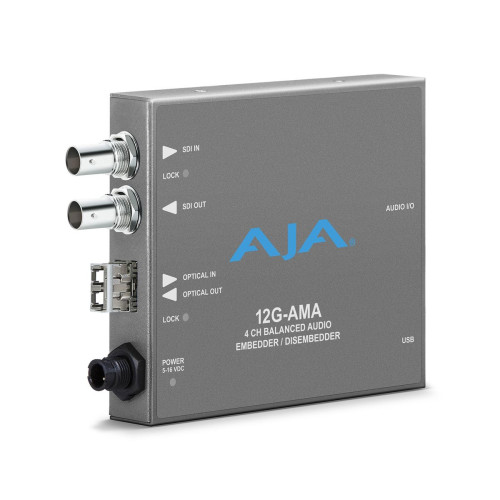

AJA 12G-AMA 4-Channel 12G-SDI Balanced Analog Audio Embedder/Disembedder - Image 1
Condition:
New
Brand Name:
UPC:
812321032260
Product highlights
-
12G-SDI Input and Output up to 4K/UltraHD
-
4-channel balanced audio Embedder/Disembedder uses LC and ST Fiber modules (modules not included)
-
Audio Disembedding is always functional with four Analog outputs
-
Supplied XLR breakout cable offers 4-channels In and 4-channels Out for a total of eight XLR connectors
-

Product Family
Mini Converters
Availability:
Limited Availability - contact us for details
Your Price: $1,045.00
or
Pay Per Month

Ask an expert

Not sure what you need or if you're looking at the right product?

(888) 542-8941

The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options.

Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable.

Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.

Features

  • 12G-SDI Input and Output up to 4K/UltraHD
  • 4-channel balanced audio Embedder/Disembedder with LC and ST Fiber model options.
  • Audio Disembedding is always functional with four Analog outputs
  • Audio Embedding is user selectable to either pass 12G-SDI input audio or embed input analog audio
  • Selectable Analog audio levels
  • Automatically detects and configures the input video standard
  • Small form factor allows for a wide variety of installation locations
  • Supplied XLR breakout cable offers 4-channels In and 4-channels Out over eight XLR connectors
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • +5-16 VDC Power

- Product Identifiers -

MPN: 12G-AMA
UPC: 812321032260

- Product Specifications -

Video Formats

  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit

Note: Raster and frame rate dependent, please see 12G-AMA Video Formats in Documents and Manual.

Video Input Digital

  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K
    • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

Fiber Input (12G-AMA-R, 12G-AMA-TR)

  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Fiber Input (12G-AMA-R-ST)

  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Video Output Digital

  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K
    • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425

Fiber Output (12G-AMA-T, 12G-AMA-TR)

  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)

Fiber Output (12G-AMA-T-ST)

  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 2 dBm (max)
    • Extinction Ratio: 3.4 dB (min)

Cable Equalization

  • (Belden 1694A coax)
    • 12 Gbps, 65m
    • 6 Gbps, 125m
    • 3 Gbps, 190m
    • 1.5 Gbps, 200m
    • 270 Mbps, 405m

Video Path Delay

Video Out is a delayed, reclocked version of Video In, at the same frame rate, etc. Video Out is undefined when no input.

  • Video Latency, time measured between video input and video output connector:
    • 12G = 3.2 μsec
    • 6G = 3.2 μsec
    • 3G level B (Dual Stream HD mode) = 6.3 μsec
    • 3G level A = 3.2 μsec
    • HD (1.5 Gb) = 6.3 μsec
    • SD (270 Mb) = 17.2 μsec

Audio Inputs and Outputs

  • Balanced Analog Audio, 1x 25 pin D female connector on the converter, 4-channels in, 4-channels out
  • Breakout cable provided with 1x 25 pin D male connector:
    • 4x XLR female input breakout connectors
    • 4x XLR male output breakout connectors

Digital Audio Converters

  • 24-bit

Embedded Audio

  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • Up to 16 channels supported

Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.

Path Audio Latency

  • Embed Path 1100 μsec
  • Disembed Path 1200 μsec

Analog Audio Levels

  • Configured via Mini-Config software:
    • Pro 1: 0 dBfs = +24 dBu
    • Pro 2: 0 dBfs = +18 dBu
    • Pro 3: 0 dBfs = +15 dBu
    • Consumer 1: 0 dBfs = +12 dBu

User Interface

  • External DIP switch
  • USB port used with Mini-Config software application to configure the device via PC/Mac

Size (w x d x h)

  • 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

  • 0.6 lb (0.3 kg)

Power

  • +5-16VDC, 10 watts. power supply required, included with purchase

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
