URSA Mini Pro 12K OLPF is a revolution in digital film with a 12288x6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user changeable lens mount and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording direct to a flash disk or SSD using its built in SuperSpeed USB-C connection!
- Product Identifiers -
MPN: CINEURSAMUPRO12KOLPFEAN: 9338716008340
- In The Box -
- Blackmagic URSA Mini Pro 12K OLPF Body
- Turret dust cap
- PL lens mount
- Power supply
- DaVinci Resolve Studio activation key
- Product Specifications -
Camera Features
- Effective Sensor Size
27.03mm x 14.25mm (Super35) - Lens Mount
PL mount included. Interchangeable with optional EF and F lens mounts. - Lens Control
12pin broadcast connector for compatible lenses and electronic control via EF mount pins on optional EF lens mount. - Dynamic Range
14 Stops - Shooting Resolutions
- 12288x6480 (12K DCI)
- 11520x6480 (12K 16:9)
- 12288x5112 (12K 2.4:1)
- 7680x6408 (12K anamorphic)
- 8192x4320 (8K DCI)
- 7680x4320 (8K 16:9)
- 8192x3408 (8K 2.4:1)
- 5120x4272 (8K anamorphic)
- 6144x3240 (6K Super16)
- 4096x2160 (4K Super16)
- 4096x2160 (4K DCI)
- 3840x2160 (4K 16:9)
- 4096x1704 (4K 2.4:1)
- 2560x2136 (4K anamorphic)
- Frame Rates
Maximum sensor frame rate dependent on resolution selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. - High Speed Frame Rates
- 12K 17:9 full sensor up to 60 fps
- 12K 2.4:1 up to 75 fps
- 8K DCI full sensor up to 120 fps
- 4K DCI full sensor up to 120 fps
- 8K 2.4:1 and 4K 2.4:1 up to 160 fps
- 6K Super 16 up to 120 fps
- 4K Super 16 up to 240 fps
- Built in ND Filters
Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop IR ND filters. - Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. - Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. - Screen Dimensions
4 inch - Screen Type
LCD capacitive touchscreen. - Metadata Support
Automatically populated lens data from i/Technology with compatible PL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. - Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. - Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
- Total Video Inputs
1x 12G-SDI - Total Video Outputs
1x 12G-SDI, 1x 3G-SDI Monitoring. - SDI Rates
1.5G, 3G, 6G, 12G. - Analog Audio Inputs
2x XLR analog switchable between mic, line and AES audio. Phantom power support. - Analog Audio Outputs
1x 3.5mm headphone jack, supports iPhone microphone for talkback. - Reference Inputs
Tri-Sync/Black Burst/Timecode. - Remote Control
1x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. - Computer Interface
- 1x USB Type-C 3.1 Gen 2 with power delivery for external drive recording.
- 1x USB Type-C for software updates.
Audio
- Microphone
Integrated stereo microphone. - Built in Speaker
1x mono speaker.
Standards
- SD Video Standards
None - HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 - Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 - SDI Compliance
SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 - SDI Audio Sampling
48 kHz and 24 bit
Media
- Media
2x CFast 2.0 card slots, 2x SD UHS-II card slots, 1x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media. - Alternative Media
1x 2.5" drive slot for 7mm and 9.5mm U.2 NVMe SSD or SATA SSD with optional URSA Mini Recorder. - Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
- Codecs
- Blackmagic RAW Constant Bitrate 5:1
- Blackmagic RAW Constant Bitrate 8:1
- Blackmagic RAW Constant Bitrate 12:1
- Blackmagic RAW Constant Bitrate 18:1
- Blackmagic RAW Constant Quality Q0
- Blackmagic RAW Constant Quality Q1
- Blackmagic RAW Constant Quality Q3
- Blackmagic RAW Constant Quality Q5
Control
- External Control
Blackmagic SDI Camera Control Protocol, iPad control, Bluetooth control, 1 x 2.5mm LANC for lens and record control.
Talkback and Tally
- Talkback
SDI Channels 15/16 and iPhone headset. - Live Tally Indicator
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage Features
- Storage Type
- 2x CFast 2.0
- 2x SD UHS-II cards
- 1x high speed USB-C expansion port for external media.
- Storage Rates
- 12K Full Sensor - 12288x6480 at 24 frames per second.
- Blackmagic RAW 5:1 - 578 MB/s
- Blackmagic RAW 8:1 - 361 MB/s
- Blackmagic RAW 12:1 - 241 MB/s
- Blackmagic RAW 18:1 - 160 MB/s
- Blackmagic RAW Q0 - 289 to 1,156 MB/s
- Blackmagic RAW Q1 - 241 to 963 MB/s
- Blackmagic RAW Q3 - 145 to 722 MB/s
- Blackmagic RAW Q5 - 97 to 413 MB/s
- 8K Full Sensor - 8192x4320 at 24 frames per second.
- Blackmagic RAW 5:1 - 257 MB/s
- Blackmagic RAW 8:1 - 161 MB/s
- Blackmagic RAW 12:1 - 107 MB/s
- Blackmagic RAW 18:1 - 71 MB/s
- Blackmagic RAW Q0 - 257 to 642 MB/s
- Blackmagic RAW Q1 - 214 to 428 MB/s
- Blackmagic RAW Q3 - 107 to 321 MB/s
- Blackmagic RAW Q5 - 81 to 257 MB/s
- 6K Super 16 - 6144x3240 at 24 frames per second.
- Blackmagic RAW 5:1 - 146 MB/s
- Blackmagic RAW 8:1 - 91 MB/s
- Blackmagic RAW 12:1 - 61 MB/s
- Blackmagic RAW 18:1 - 40 MB/s
- Blackmagic RAW Q0 - 73 to 291 MB/s
- Blackmagic RAW Q1 - 61 to 242 MB/s
- Blackmagic RAW Q3 - 37 to 182 MB/s
- Blackmagic RAW Q5 - 25 to 104 MB/s
- 4K Full Sensor - 4096x2160 at 24 frames per second.
- Blackmagic RAW 5:1 - 161 MB/s
- Blackmagic RAW 8:1 - 107 MB/s
- Blackmagic RAW 12:1 - 80 MB/s
- Blackmagic RAW 18:1 - 53 MB/s
- Blackmagic RAW Q0 - 161 to 268 MB/s
- Blackmagic RAW Q1 - 107 to 214 MB/s
- Blackmagic RAW Q3 - 81 to 179 MB/s
- Blackmagic RAW Q5 - 54 to 161 MB/s
- 4K Super 16 - 4096x2160 at 240 frames per second.
- Blackmagic RAW 5:1 - 648 MB/s
- Blackmagic RAW 8:1 - 405 MB/s
- Blackmagic RAW 12:1 - 271 MB/s
- Blackmagic RAW 18:1 - 180 MB/s
- Blackmagic RAW Q0 - 648 to 1,618 MB/s
- Blackmagic RAW Q1 - 540 to 1,079 MB/s
- Blackmagic RAW Q3 - 271 to 810 MB/s
- Blackmagic RAW Q5 - 203 to 648 MB/s
- Recording Formats
Blackmagic RAW Q0, Q1, Q3, Q5, 5:1, 8:1, 12:1 and 18:1 at 12288x6480, 11520x6480, 12288x5112, 7680x6408, 8192x4320, 7680x4320, 8192x3408, 5120x4272, 6144x3240, 4096x2160, 3840x2160, 4096x1704 and 2560x2136 stored as 12 bit non-linear with film, extended video, video or custom 3D LUT embedded in metadata.
Actual storage rates are dependent on image subject matter.
Software
- Software Included
- Blackmagic OS
- DaVinci Resolve Studio for Mac and Windows including activation key
- Blackmagic Camera Setup
- Blackmagic RAW Player
- Blackmagic RAW QuickLook Plugin
- Blackmagic RAW SDK
- Blackmagic RAW Speed Test
Operating Systems
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later
- Windows 10
Power Requirements
- Power Supply
1x External 12V power supply. 12 pin Molex connector for rear battery plate. - External Power Input
- 1x 4 pin XLR port for external power or battery use.
- 1x 12 pin Molex connector on rear battery plate.
- Custom V-mount battery plate with D-tap +12V regulated output from camera.
- Power
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.
Accessories
- Optional Accessories (each sold separately)

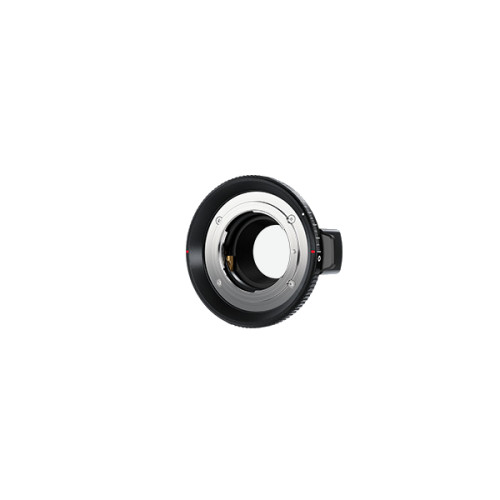

- URSA Mini Pro PL, EF and F Mounts
- URSA Mini Pro Shim Kit
- URSA Mini Shoulder Kit including top handle and extender arm
- URSA Viewfinder
- URSA Studio Viewfinder
- URSA Mini Recorder
- URSA VLock Battery Plate
- URSA Gold Battery Plate
- URSA Mini Mic Mount
- URSA Mini Top Handle
- URSA Handgrip
- Blackmagic Camera Fiber Converter
Physical Specifications
- Dimensions
5.92in x 9.2in x 5.78in - Weight
5.62lb
Environmental Specifications
- Operating Temperature
0° to 40°C (32° to 104°F) - Storage Temperature
-20° to 45°C (-4° to 113°F) - Relative Humidity
0% to 90% non-condensing
