Blackmagic Design ATEM Television Studio Pro 4K

SKU:
BMD-SWATEMTVSTU-PRO4K
Blackmagic Design ATEM Television Studio Pro 4K - Image 1
Availability:
In Stock - usually ships next business day
Condition:
New
Brand Name:
Product highlights
-
Total Video Inputs: 8
-
Total Outputs: 12; Total Aux Outputs: 1
-
SDI Rates: 1.5G, 3G, 6G, 12G
-
Total Audio Inputs: 2 x XLR; 1 x Microphone
-
Total Audio Outputs: 1 x Headphone
Product Family
ATEM Production Switchers
Your Price: $2,995.00

Ask an expert

Not sure what you need or if you're looking at the right product?

(888) 542-8941

Blackmagic ATEM Television Studio Pro 4K features 8 independent 12G-SDI inputs, for working in all popular HD and Ultra HD formats up to 2160p60. Each input features re-sync as well as a full low latency standards converter, which means the input is automatically adapted to the switchers format. You can even have 8 inputs, all running different video formats! The upgraded Fairlight audio mixer features dynamics, 6 band parametric EQ, dual mono channel split and stereo simulator with audio delay on the analog inputs. ATEM Television Studio Pro 4K also features the ATEM Advanced Chroma Key, Ultra HD multi?view and motion clips in the media pool.


- Product Identifiers -

MPN: SWATEMTVSTU/PRO4K
EAN: 9338716005431

- In The Box -

  • ATEM Television Studio Pro 4K
  • SD card with software and manual


- Product Specifications -

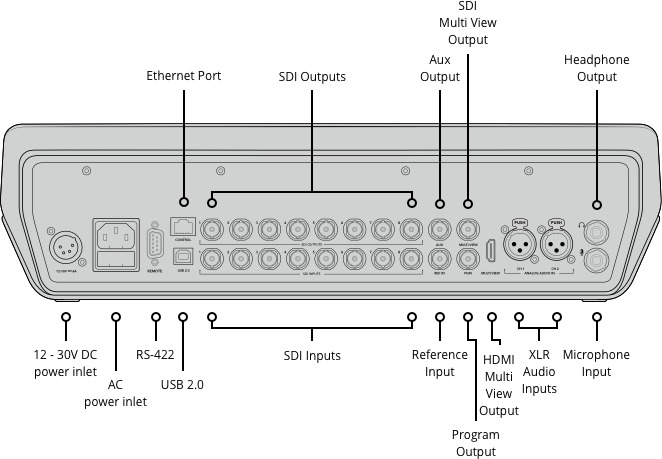

Connections

  • Total Video Inputs: 8
  • Total Outputs: 12
  • Total Aux Outputs: 1
  • SDI Rates: 1.5G, 3G, 6G, 12G.
  • Total Audio Inputs: 2 x XLR. 1 x Microphone.
  • Total Audio Outputs: 1 x Headphone.
  • SDI Video Inputs: 8 x 10-bit HD/UHD switchable. 2 channel embedded audio.
  • HDMI Video Inputs: None
  • Reference Inputs: Tri-Sync or Black Burst.
  • Video Input Re-Sync: On all 8 inputs.
  • Frame rate and format convertors: On all 8 inputs.
  • SDI Program Outputs: 9 x 10-bit HD/UHD switchable.
  • SDI Audio Outputs: 2 Ch embedded into SDI output.
  • Multi View Monitoring: 1
  • Multi View Video: 1 x SDI and 1 x HDMI.

Standards

  • SD Video Standards: None
  • HD Video Standards
    • 720p50, 720p59.94
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
    • 1080i50, 1080i59.94
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
  • SDI Compliance: 292M and 424M, 2081, 2082.
  • Video Sampling: 4:2:2 10-bit
  • Color Precision: 4:2:2 10-bit
  • Color Space: 4:2:2 YUV
  • Input Resolutions for Computers
    • 720p50, 720p59.94
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080i50, 1080i59.94, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.
  • Colorspace Conversion: None
  • Processing Delay: 6 Lines.
  • Audio Mixer
    • 12 input x 2 channel mixer.
    • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
    • Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Delay line and Stereo Synthesizer on the XLR inputs only.
    • Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.

Product Specifics

  • Upstream Keyers: 1 with Chroma/Linear/Luma key.
  • Downstream Keyers: 2
  • Chroma Keyers: 1
  • Linear/Luma Keyers: 3
  • Talkback Support: Built in, uses aviation headset.
  • Mix Minus Support: Yes, on 8 camera PGM outputs.
  • Transition Keyer (Stinger/DVE): Stinger and DVE.
  • Total Number of Layers: 5
  • Pattern Generators: 2
  • Color Generators: 2
  • DVE with 3D Borders & Drop Shadow: 1
  • Interface: Minimum monitor resolution of 1366 x 768.
  • Number of Windows: 1 x 10
  • Routable Windows: 8 routable and 2 fixed for Program and Preview.
  • Tally: Red for program and green for preview indication.
  • Tally Output: Embedded via SDI. Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
  • Windows Source Labels: Yes.

Multi View Monitoring

  • Multi View Monitoring: 1 x 10 Views.
  • Multi View Video Standard: HD/Ultra HD.

Media Player

  • Media Players: 2, with non volatile flash memory.
  • Media Pool Still Image Capacity: 20 with fill and key.
  • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
  • Channels: Fill and key for each Media Player.
  • Media Pool Clip Capacity: 2 with fill and key. Shared pool.
  • Media Pool Clip File Format: TGA Sequence.
  • Media Player Clip Length in 720 HD: 1440 frames.
  • Media Player Clip Length in 1080 HD: 360 frames.
  • Media Player Clip Length in Ultra HD: 90 frames.
  • Media Pool Audio File Format: WAV, MP3 and AIFF.

Control

  • Control Panel: Built in with camera control. Software panel included. Supports optional broadcast panel.
  • Control Panel Compatibilty: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
  • Control Panel Included: ATEM Software Control Panel included free for macOS Sierra 10.12 or macOS High Sierra 10.13 or later and Windows 8.1 64-bit or Windows 10 64-bit.

Software

  • Software Updates: Using USB connection directly connected to macOS or Windows computers. Includes ATEM Switcher Utility.
  • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

  • macOS 10.12 Sierra, macOS High Sierra 10.13 or later.
  • Windows 8.1 or Windows 10.

Power Requirements

  • Power Supply: 1 x Internal 110 - 240V AC. 4 pin 12V DC.
  • Power Usage: 70W

Physical Specifications

  • Dimensions: 16.65in x 11.89in

Environmental Specifications

  • Operating Temperature: 5°C to 40°C
  • Storage Temperature: -20° to 60°C (-4° to 140°F)
  • Relative Humidity: 0% to 90% non-condensing
